AUTinyDane

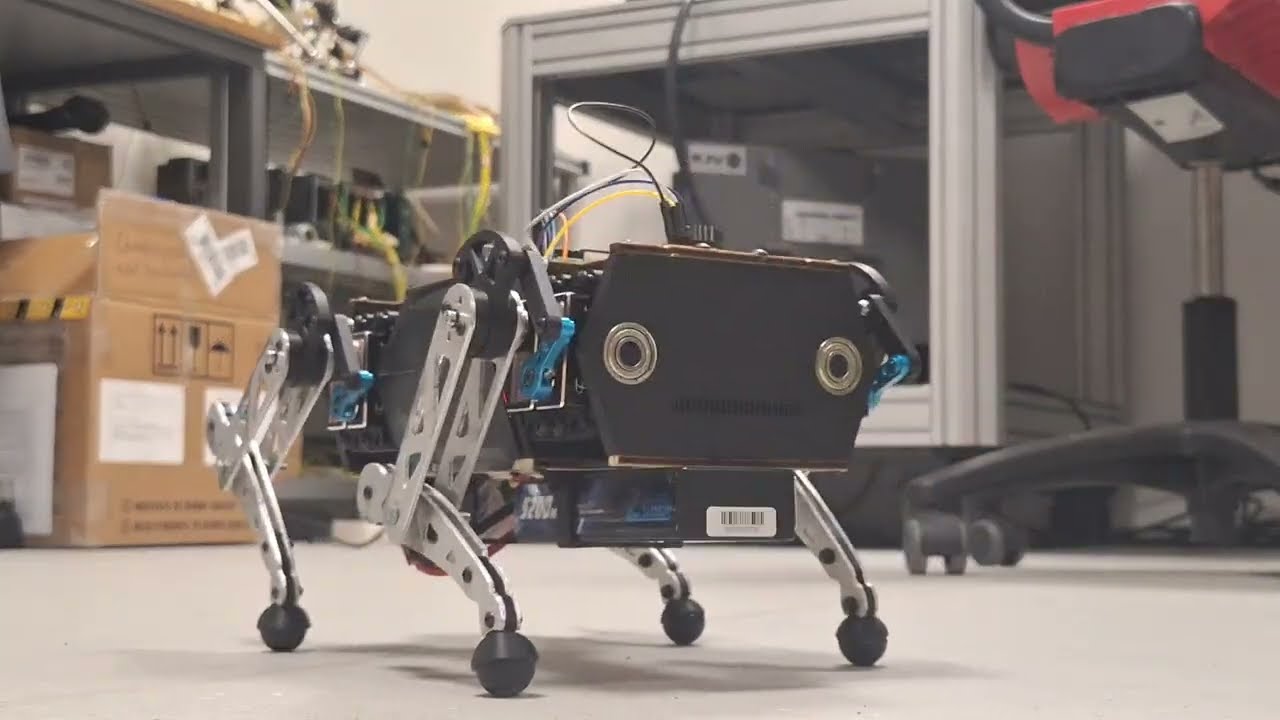

AUTinyDane is an open-source, affordable quadruped robot platform developed at Aarhus University.
The project focuses on a complete real robot stack: mechanical design, servo actuation, inverse kinematics, gait generation, and PS4 teleoperation on a Raspberry Pi.

What this repository contains

Full Python control stack for a 12-DOF quadruped
Real-time gait/state logic for trot and standing control modes
Servo + IMU hardware interface for Raspberry Pi
PS4 controller integration for teleoperation
Calibration and utility scripts for bring-up and maintenance

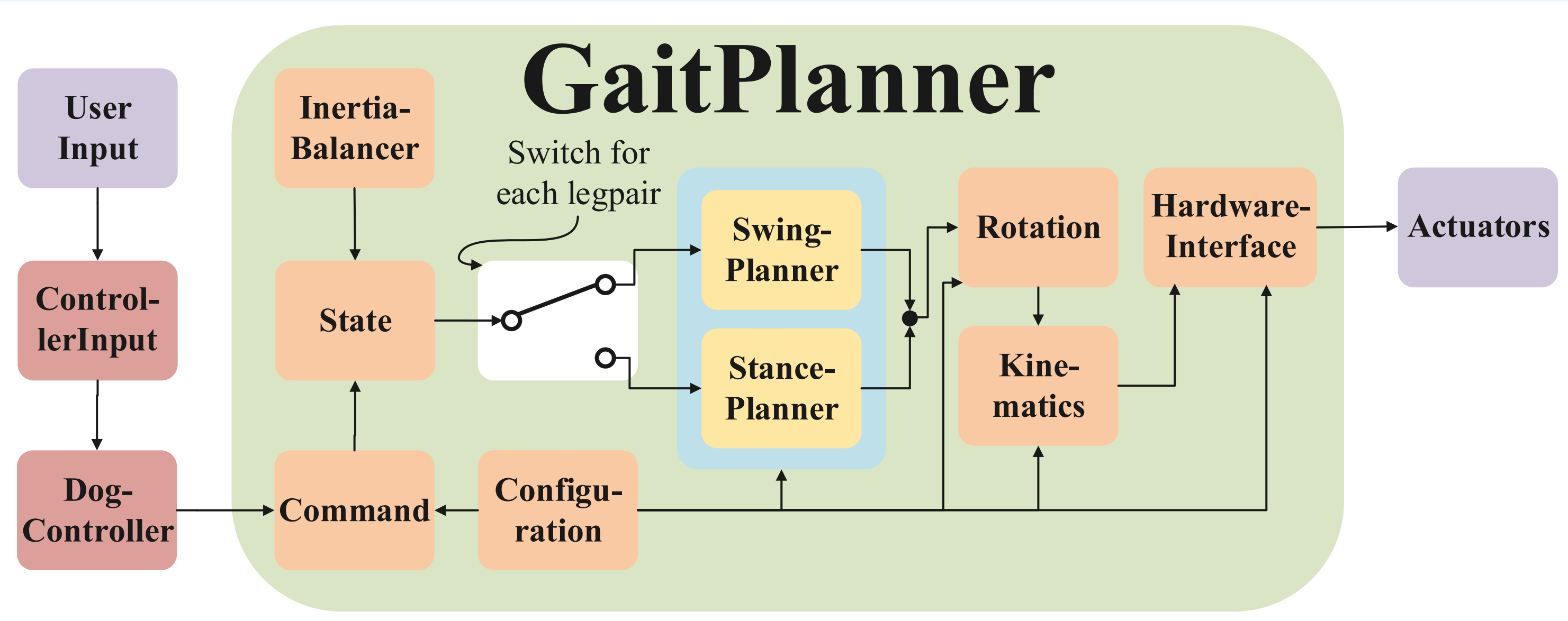

System overview

Software and system overview

Hardware architecture

Controller: Raspberry Pi (single-board control)
Actuation: 12 hobby servos driven by PCA9685 boards
IMU: MPU6050
Chassis: Laser-cut + 3D-printed hybrid structure

Software architecture

Core runtime flow:

Read controller command inputs
Update movement/stance command state
Generate leg trajectories (swing/stance planners)
Solve inverse kinematics
Send commands to servo drivers

Main components:

src/GaitPlannerV2.py – trot cycle logic
src/StancePlannerV2.py, src/SwingPlannerV2.py – stance/swing trajectories
src/Kinematics.py – inverse kinematics
src/HardwareInterface.py – servo/IMU communication
src/PS4Controller/ – DualShock 4 mapping

Repository structure

AUTinyDane/
├── run_robot.py                 # Main runtime entry point
├── requirements.txt             # Python dependencies
├── src/                         # Core runtime modules
│   ├── Configuration.py         # Robot geometry and limits
│   ├── Command.py               # Command state and mode abstraction
│   ├── State.py                 # Runtime gait/state values
│   ├── Kinematics.py            # IK solver
│   ├── HardwareInterface.py     # PCA9685 + IMU interface
│   ├── ServoCalibration.py      # Servo neutral offsets and gains
│   ├── GaitPlannerV2.py         # Main gait planner
│   ├── StancePlannerV2.py       # Stance phase planning
│   ├── SwingPlannerV2.py        # Swing phase planning
│   └── PS4Controller/           # Controller input mapping/listener
├── tools/                       # Calibration and utility scripts
│   ├── calibrate_servos.py      # Interactive servo offset calibration
│   ├── ServoNeutral.py          # Move servos/legs to neutral
│   ├── TestServo.py             # Interactive servo testing helpers
│   └── IMU_calibration.py       # IMU calibration utility
├── tests/                       # Manual/experimental test scripts
└── legacy/                      # Older planners/simulators

Prerequisites

Hardware/runtime environment

Raspberry Pi with Python 3
I2C enabled on the Pi
PCA9685 board(s) connected on expected addresses (0x40–0x43 in current code)
MPU6050 IMU connected (0x68)
PS4 controller (for teleoperation)

Software

Python 3.10+ recommended
pip

Note: Several dependencies are Raspberry Pi / hardware specific and may not install or run on non-Pi machines.

Installation

git clone https://github.com/JensLajordMunk/AUTinyDane.git
cd AUTinyDane
python -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt

If running on Raspberry Pi, also ensure system packages and I2C support are configured.

Quick start (robot runtime)

Verify wiring and power-off safety state
Confirm/update servo calibration in src/ServoCalibration.py
Pair and connect the PS4 controller (/dev/input/js0 expected)
Run:

python run_robot.py

Controller mapping

From src/PS4Controller/DogController.py:

X → TROT
Circle → ROTATE
Square → TRANSLATE
Triangle → NEUTRAL
Left stick (L3) → translational commands (forward/lateral + stand height)
Right stick (R3) → yaw/roll/pitch depending on mode

Current modes are defined in src/Command.py:

NEUTRAL
TROT
ROTATE
TRANSLATE

Calibration and utility scripts

Servo neutral/pose checks:
```
python tools/ServoNeutral.py
```
Interactive servo calibration (writes src/ServoCalibration.py):
```
python tools/calibrate_servos.py
```
Servo test helper:
```
python tools/TestServo.py
```

Run these carefully with the robot safely supported/off-ground.

Development and testing

This repository currently contains mostly hardware/manual test scripts under tests/ rather than a full automated CI-style unit test suite.

Basic discovery check:

python -m unittest discover -q

Useful manual scripts include:

tests/Test_kinematics.py
tests/gait_simulatorV2.py
tests/IMU_test.py

Troubleshooting

Controller not detected: ensure DS4 is connected and appears as /dev/input/js0.
No servo movement: verify I2C wiring and PCA9685 addresses.
Unstable pose/motion: re-run servo calibration and verify geometry values in src/Configuration.py.
Import/runtime issues on desktop OS: many dependencies target Raspberry Pi hardware.

CAD model

View CAD Model in Onshape

License

This project is licensed under the MIT License. See LICENSE.
